Power and Signal Connectors

The Intercontec range of Power and Signal connectors are the first and unique Hybrid connectors with 5x Power & 6x Signal contacts plus 1x Quadrax Element (Bus module) for fast industrial ethernet connections. With a ready-to-assemble, separately shielded Ethernet Element the Hybrid Connector creates new possibilities. The Hybrid connectors meet the higher electric strength requirements when daisy-chaining decentrally controlled Servo Motors for example, it is possible to run 850VDC at up to 30A of current and are suitable for up to 4mm cross section wire.

Products Available
M23 Power & Signal Connectors

Intercontec's 723 Htec series is an M23 hybrid that is designed for use in applications that require a combination of data and power contacts within the same insert and body style.

htec power and signal connector from intercontecThe 723 series is UL listed and VDE approved and is supplied in seven body styles for both cable and panel mounting and is offered with two fifteen pole insert styles, one of which features the an Ethernet module for industrial Cat 5 applications, both styles are supplied with the Speedtec coupling system and the innovative crown clamp.

The summary below outlines this range, including some of the general technical data associated with the 723 series.

General Technical Data

  • Contact Types Crimp
  • Temperature Range -20°C to 130°C
  • Protection Type IP 66/67 when connected
  • Shielding EMC shielding housing
  • Mating Cycles Min. 500 cycles
  • Clamping Range
  • Locking Types SpeedTEC
  • Body Styles

    Manufactured in Nickel plated brass the 723 htec series of M23 hybrid connectors are available in the following panel & cable mounted body styles:

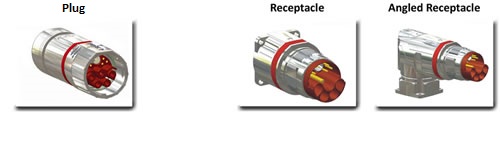

    M23 Hybrid Power and Signal Connectors

    The following contact arrangements are available within this range, for further information; please see the 723 series catalogue.

    m23 power and signal connector inserts

    More info?


    More info?
    Please contact us

    M32 Power & Signal Connectors - Series 1

    Originally designed for use with semi automatic tools for the automotive industry, Intercontec's 932 Twintec series is an M32 hybrid that combines both power and signal contacts in the same body. The range is UL listed and VDE approved and is supplied in six body styles for both cable and panel mounting and is offered with three insert styles.

    The summary below outlines an overview of this range, including body and insert styles in addition to some of the general technical data associated with this range, for further information please contact us or go to the 932 series catalogue

    General Technical Data

  • Contact Types Crimp
  • Temperature Range -20°C to 130°C
  • Protection Type IP 66/67 when connected (IP69K to special order)
  • Shielding EMC shielding housing
  • Mating Cycles Min. 500 cycles
  • Clamping Range Multi-hole cable clamp Ø9.0/Ø12.0mm, Ø4.2/Ø20.0mm
  • Locking Types M33, M37, threaded. Trapezodial thread 38 x 3

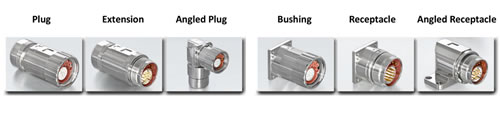

  • Body Styles

    Manufactured in nickel plated brass, the 932– M32 Twintec series of hybrid connectors is available in the following body styles, for dimensional data and information on the 3 styles of gland offered with the cable mounted connectors , including the crown clamp please see the 932 series catalogue

    Insert Styles

    The following contact arrangements are available within this range, for further information; please see the 932 series catalogue.

    m32 hybrid power and siganl connector inserts




    M32 Power & Signal Connectors - Series 2

    Intercontec's 932 Twintec 2 series, builds on the success of the first series of Twintec connectors and offers an M32 hybrid connector that combines both power and signal contacts in the same body. The range is UL listed and VDE approved and is supplied in four body styles for both cable and panel mounting and is offered with three insert styles.

    The summary below outlines an overview of this range, including body and insert styles in addition to some of the general technical data associated with this range, for further information please contact us or go to the 932 series catalogue

    General Technical Data

  • Contact Types Crimp
  • Temperature Range -20°C to 130°C
  • Protection Type IP 66/67 when connected (IP69K to special order)
  • Shielding EMC shielding housing
  • Mating Cycles Min. 500 cycles
  • Clamping Range Multi-hole cable clamp Ø9.0/Ø12.0mm, Ø4.2/Ø20.0mm
  • Locking Types M33, M37, threaded. Trapezodial thread 38 x 3
  • Body Styles

    Manufactured in nickel plated brass, the 932– M32 Twintec 2 series of hybrid connectors is available in the following body styles, for dimensional data and information on the gland styles offered with the cable mounted plug & extension , including the crown clamp please see the 932 series catalogue

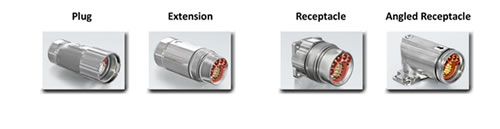

    m32 power and signal connectors body styles

    Insert Styles

    The following contact arrangements are available within this range, for further information; please see the 932 series catalogue.

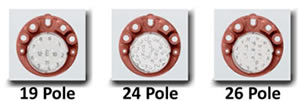

    insert styles M32 power and signal connectors



    Contact Arrangements Maximum Current Rating Voltage rating
    (AC/DC)
    Insulation Voltage Rating
    19 (5+2+12) 35A/2.4A/10A 630V125V/250V 6kV/2kV/2.5K
    24 (5+2+17) 35A/2.4A/10A 630V/125V/250V 6kV/2kV/2.5K
    26 (5+2+19) 35A/2.4A/10A 630V/125V/250V 6kV/1.5kV/2.5K



    More info?


    More info?
    Download the 932 series catalogue

    M40 Power & Signal Connectors

    Intercontec's 740 Htec series is an M40 hybrid that is designed for use in applications that require a combination of data and power contacts within the same insert and body style.

    The 740 series is UL listed and VDE approved and is supplied in three body styles for both cable and panel mounting and is offered with a nine pole insert, with a choice of two pole data element or six pole Ethernet element, both with seperate EMC Shielding, housing types styles are supplied with the Speedtec coupling system and the innovative crown clamp.

    The summary below outlines this range, including some of the general technical data associated with the 740 series.

    General Technical Data

  • Contact Types Crimp
  • Temperature Range -20°C to 130°C
  • Protection Type IP 66/67 when connected
  • Shielding EMC shielding housing
  • Mating Cycles Min. 500 cycles
  • Clamping Range 7-25mm
  • Locking Types SpeedTEC
  • Body Styles

    Manufactured in Nickel plated brass the 740 htec series of M40 hybrid connectors are available in the following panel & cable mounted body styles:

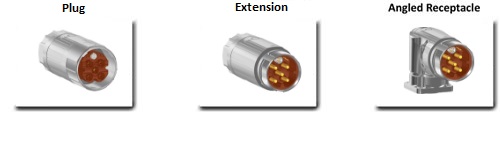

    M40 Hybrid Power and Signal Connectors

    The following contact arrangements are available within this range, for further information; please see the 740 series catalogue.

    More info?


    More info?
    Please contact us
